Audio Section
• Stereo mode continuous average power: 75 watts/ch, 1kHz, @ 6 ohms
• Multi-channel power: 75 watts/ch, two channels driven @ 6 ohms
• Input sensitivity/impedance: 200mV/47kohms
• Signal-to-noise ratio (IHF-A): 95dB
• Adjacent channel separation

Dolby Pro Logic® I/II: 40dB
Dolby Digital: 55dB
DTS: 55dB

• Frequency response @ 1W (+0dB, –3dB): 10Hz – 100kHz
• High Instantaneous Current Capability (HCC): ±25 amps
• Transient intermodulation distortion (TIM): Unmeasurable
• Rise time: 16μ sec
• Slew rate: 40V/μsec

FM Tuner Section
• Frequency range: 87.5 – 108MHz
• Usable sensitivity (IHF): 1.3μV/13.2dBf
• Signal-to-noise ratio (mono/stereo): 65dB/62dB
• Distortion (mono/stereo): 0.2%/0.3%
• Stereo separation: 35dB @ 1kHz
• Selectivity (±400kHz): 70dB
• Image rejection: 80dB
• IF rejection: 80dB

AM Tuner Section
• Frequency range: 520kHz – 1720kHz
• Signal-to-noise ratio: 45dB
• Usable sensitivity: 500μV
• Distortion (1kHz, 50% mod): 0.8%
• Selectivity (±10kHz): 30dB

Video Section
• Video format: PAL
• Input level/impedance: 1Vp-p/75 ohms
• Output level/impedance: 1Vp-p/75 ohms
• Video frequency response: 10Hz – 8MHz (–3dB)
• HDMI: With 3D and Deep Color

General
• Power requirement: 220V AC/50Hz
• Power consumption: <0.5W (standby); 280W (maximum)
• Dimensions (W x H x D): 440mm x 125mm x 330mm
• Weight: 9.1kg (20lb)

Optional Accessory
• BTA 10 Bluetooth Adaptor: stream audio from compatible Bluetooth devices

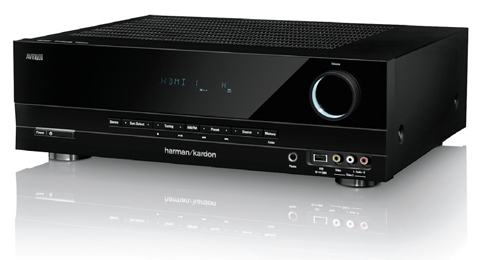

harman/kardon avr70, avr-70, hk avr70, 5.1, 3D, hk avr-70, harmankardon avr-70,

Akciós ár: 79.999 Ft
Régi ár: 89.999 Ft
